Non-TEMA Type Condensers

Code-Compliant Thermal Solutions for Critical Process Services

Non-TEMA condensers provide flexible, compact, and highly adaptable heat transfer solutions for applications where standardized TEMA configurations are not required or where process conditions demand customized geometries.

These condensers are particularly effective for low to moderate heat duties, space-constrained installations, fouling services, and high-pressure applications, offering simplified construction, ease of maintenance, and cost-effective performance.



Non-TEMA condensers are commonly used in conjunction with vacuum systems, process cooling, vapor condensation, and specialty heat transfer applications where traditional shell-and-tube exchangers may be oversized or uneconomical.

Non-TEMA condensers encompass a range of designs that deviate from standardized shell-and-tube configurations while still delivering efficient thermal performance. The most common configurations include:



Non-TEMA Construction Types Offered

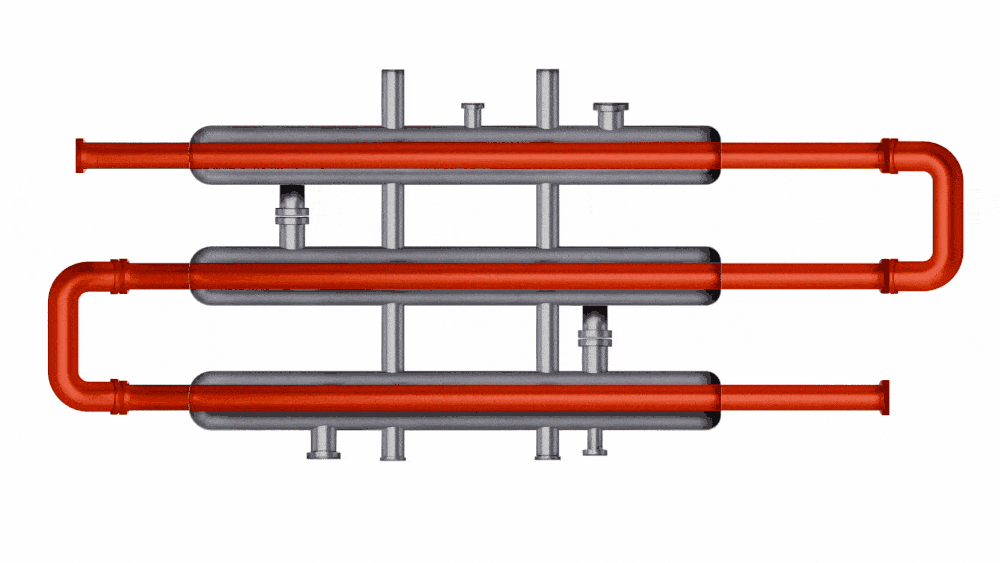

Double Pipe
(Tube-in-Tube) Condensers

A double pipe condenser consists of one pipe inside another, where one fluid flows through the inner pipe and the second fluid flows through the annular space between the pipes.

Key Features:

  • True counter-current or parallel flow configurations
  • Simple, robust, and easy-to-maintain design
  • Suitable for high-pressure services and small heat duties
  • Can be installed in series or parallel for modular scalability


Advantages:

  • Low capital cost and straightforward fabrication
  • Excellent for dirty or viscous fluids due to larger flow passages
  • Easy inspection and mechanical cleaning


Limitations:

  • Limited heat transfer area per unit
  • Requires multiple units for large duties, increasing footprint and piping complexity


Typical Applications:

  • Small condensers in vacuum systems
  • Oil & gas and petrochemical services
  • Pilot plants and modular process units

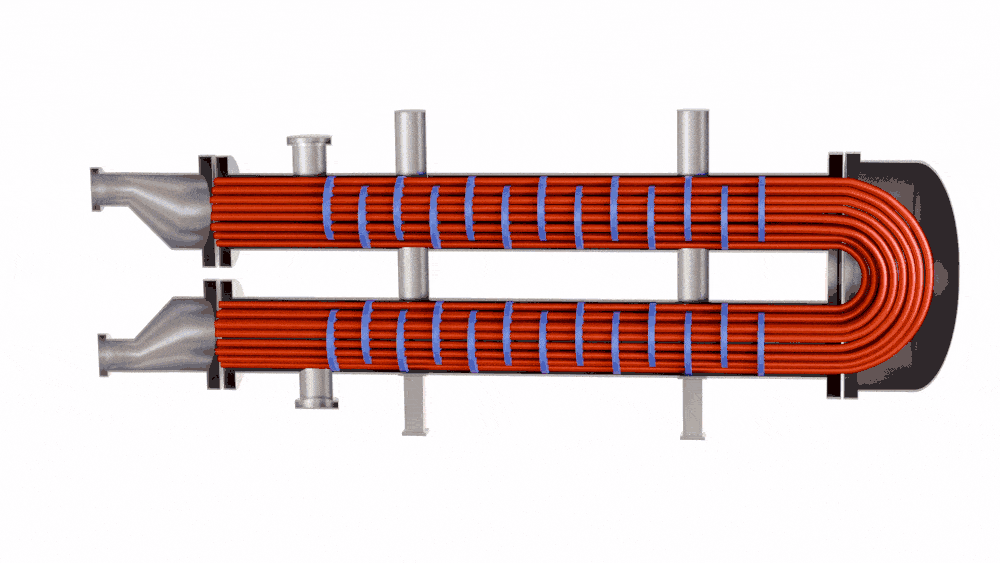

Hairpin
(U-Tube Double Pipe) Condensers

Hairpin condensers are an extension of the double pipe concept, where the tube is bent into a U-shape (hairpin), allowing for compact layouts and true counter-current flow.

Key Features:

  • Compact footprint with high thermal efficiency
  • Designed for high-pressure and high-temperature services
  • Naturally supports counter-current flow, maximizing heat transfer


Advantages:

  • Handles temperature cross conditions effectively
  • Suitable for thermal shock and cyclic operation
  • Excellent for condensing and subcooling services


Limitations:

  • Limited surface area compared to large shell-and-tube units
  • May require multiple modules for large-scale systems


Typical Applications:

  • Vapor condensation in chemical and petrochemical plants
  • High-pressure gas cooling
  • Vacuum system inter/after condensers

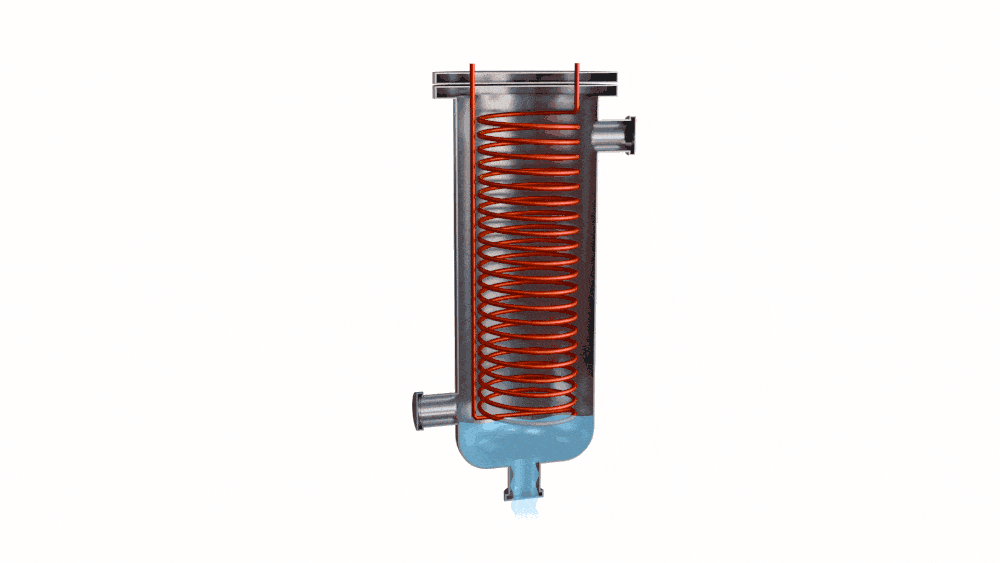

Spiral / Coil Condensers
(Helical or Spiral Flow)

Spiral and coil condensers utilize curved or coiled flow passages to maximize heat transfer area while maintaining a compact footprint. These designs are especially effective in handling fouling, viscous, or multiphase streams.

Key Features:

  • Continuous curved flow path promoting turbulence
  • Compact design with efficient space utilization
  • Self-cleaning tendencies in spiral configurations


Advantages:

  • Highly resistant to fouling and plugging
  • Efficient performance at low flow rates or laminar conditions
  • Suitable for dirty or solid-laden fluids


Limitations:

  • Higher capital cost compared to simpler designs
  • More complex fabrication and maintenance


Typical Applications:

  • Sludge, wastewater, and fouling services
  • Pulp & paper and chemical processing
  • Condensation of vapors with non-condensable

Design & Construction Flexibility

Croll Reynolds Non-TEMA condensers are engineered to meet a wide range of process, mechanical, and project-specific requirements:

  • Horizontal or vertical configurations
  • Carbon steel, stainless steel, and specialty alloys
  • Custom nozzle orientation and piping integration
  • Modular or skid-mounted designs
  • Designed per client specifications or international standards

Codes & Standards Compliance:

  • ASME / HEI / API / PED / GB / IBR / Shell DEP / ARAMCO

Certifications Coverage:

  • Including all major international certifications (U-Stamp & NBR / CRN / CE-PED / KOSHA / MIGAS / DOSH / GOST-R / MOM / AS1210)

Why Choose Croll Reynolds Non-TEMA Condensers

  • 100+ years of thermal and vacuum system expertise
  • Proven performance in steam jet ejector and hybrid vacuum applications
  • Full compliance with HEI, API and ASME standards
  • Fully customized designs tailored to process requirements
  • In-house testing and validation prior to shipment
  • Global project execution experience with international compliance
  • Seamless integration with steam jet ejector vacuum systems and hybrid vacuum systems
  • Experienced in complying with extensive list of stringent international specifications
  • Experienced in certifying heat exchangers and pressure vessels for all major national & international certifications.

Non-TEMA Heat Exchanger

Non-TEMA condensers provide a flexible and economical alternative to standardized shell-and-tube exchangers, particularly for specialized services where compact design, fouling resistance, or high-pressure capability is critical.

With configurations such as double pipe, hairpin, and spiral/coil designs, Croll Reynolds delivers engineered solutions that optimize performance, reliability, and lifecycle cost for demanding industrial applications.

  • Chemical
    – Condensers, reboilers, process heating and cooling

  • Oil & Gas / Refining
    – Product cooling, overhead condensers, vacuum systems

  • Power Generation
    – Steam surface condensers, auxiliary coolers

  • Petrochemical
    – Reactor temperature control and separation services

  • Pharmaceutical
    – Controlled process heating and cooling

  • Food & Beverage
    – Hygienic heating and product thermal conditioning
